Fail-Safe
Reliable Stopping
Supports controlled brake action and safe stopping behavior for elevator or escalator operation.
South Africa And Russia Installation Experience
Brake control board ID 560196 for Reliable Elevator Service.

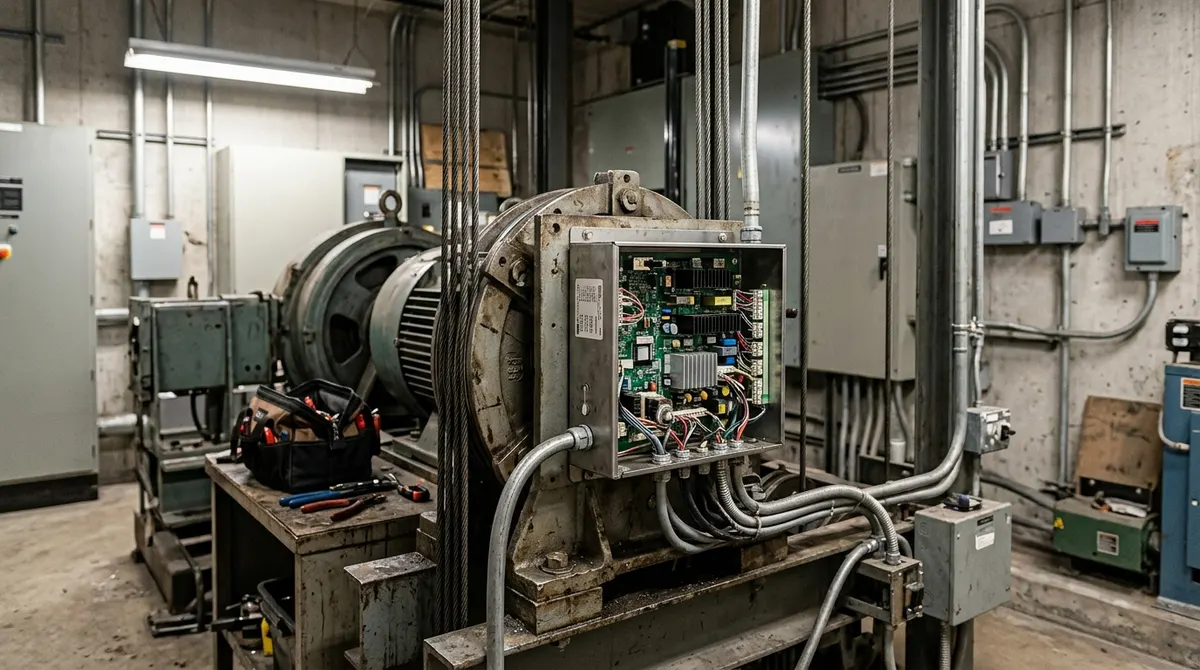

In South Africa and Russia, the ID 560196 brake control board was commissioned inside Schindler 5500 control cabinets, with technicians checking brake release timing, feedback switches, and safe stopping response before handover.
View Specs
Application:Schindler Elevator 5500 series
Application
Schindler Elevator 5500 series
Drive Control Role
Installed and commissioned around real South Africa and Russia maintenance conditions.
Technicians checked the brake coil output sequence, feedback switch response, and cabinet wiring before running the elevator through start-stop cycles. The board was treated as part of the safety chain, not just a cabinet electronic spare.
Protection
Safety-Critical Part
Designed for maintenance replacement where braking stability and safety feedback matter.
Product Specifications
Schindler Elevator Brake control board ID 560196 for 5500 series
Installed for Schindler 5500 service in South Africa and Russia, this brake control board required careful checks around control-cabinet wiring, brake timing, feedback confirmation, and safe stopping performance.
Product Name
Brake control board
Brake control board ID 560196 used as a targeted elevator spare part for service and repair.
- Elevator Brand
- Schindler Elevator
- Elevator Model
- 5500 series
- Part MODEL
- ID 560196
- Markets
- South Africa, Russia
Typical configuration
Installation experience centered on confirming compatibility with the existing Schindler Elevator system, checking wiring and mounting conditions, testing response after replacement, and documenting the result for future maintenance.
Core Functions
Field-tested around local installation and commissioning needs.
On-Site Matching
Technicians checked the brake coil output sequence, feedback switch response, and cabinet wiring before running the elevator through start-stop cycles.
Commissioning Check
After installation, technicians verified signal response, operating behavior, and fault feedback before returning the elevator to normal use.
Maintenance Handover
The replacement process left the local service team with clearer inspection points for future troubleshooting and routine maintenance.
Regional Project Fit
The case reflects practical spare-part replacement needs in South Africa and Russia, where stable operation and fast service recovery are more important than cosmetic changes.
Customer Feedback
Field notes from maintenance teams.
Maintenance Supervisor
South Africa
"The South Africa installation was all about brake feedback. Once the board signals were stable, fault checks became clearer."
Service Engineer
Russia
"In Russia, the replacement helped us verify release and holding behavior without chasing intermittent cabinet signals."
